LoRa Serial Converter
LoRa | RS485 | 220Vac | Din-Rail

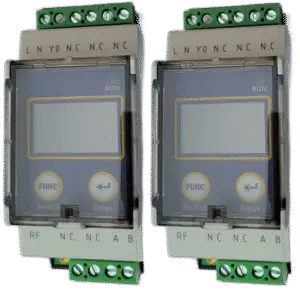

The LoRa Serial Converter CC32LR is an RS-485 device that uses an enhanced LoRa module, works in the data transmission
mode, supports various protocols, and can realize long-distance wireless network communication by joining the LoRa network.
It is widely used in intelligent buildings, municipal lighting, tunnel lighting, monitoring and automation and other industries. This product is installed with 35mm DIN standard rail, with a width of 2P, and is easy to install in the standard switch box and chassis.
High-performance 32bit processor is adopted, with built-in OLED dual color display screen to display parameters.
Double buttons can turn pages for viewing and modify key communication parameters.
It is characterized by fast installation, simple configuration, high reliability, low power consumption, small size and light weight.
Power Acquisition
Modbus RS485 Monitoring
Industrial Sensing
iSMA Inputs and Outputs via Modbus RS485 Communication
PV Monitoring
GivEnergy PV Monitoring via Modbus RS485
Water Energy Monitoring
Water meters, heat meters and electrical meters via Modbus RS485 communication
Industrial Communication
Oil rigs and Industrial applications using Modbus RS485
Green Building
Monitor Equipment ia Modbus RS485 communication
About
PV Monitoring
- Wireless acquisition by connecting to microinverters
- Reduce cable deployment, save costs, and be aesthetically pleasing
- Monitoring of photovoltaic power generation data
- Suitable for photovoltaic and energy storage industries
| Objects | Function |
| Communication mode | LoRaWNA, LoRaRadio, LoRaPMAC |
| Update Firmware | Support RS-485 port upgrade and LoRa OTA over-the-air upgrade |
| AT command | Support remote AT command maintenance and local 485AT command configuration |
| Automatic polling task management system |
RS-485 bus devices that can be configured with timed polling can actively report the data that the polling device responds to. |
| RS-485 baud rate | 1200bps、2400bps、4800bps, 9600bps |
| Local configuration | RS-485 parameters, wireless working mode, and the time interval of the automatic polling system can be configured by pressing the key |
| Sort | Objects | Minimum | Typical | Maximum |
| Operating Voltage | Normal operating voltage range | AC85V | AC220V | AC420V |
| Static power dissipation | Average power consumption in LoRa receiving mode or standby @ 220Vac | — | — | 0.5W |
| Maximum power consumption | Average power consumption when LoRa sends data @ 220Vac |
— | 1.1W | — |
LoRaWAN
- Standard LoRaWAN 1.0.2 communication protocol
- Class C mode, OTAA/ABP
- AC 85-420V, 0.01A, 50/60Hz
- Data conversion between traditional RS485 communication and LoRaWAN communication can be implemented
| Sort | Objects | Min | Typ | Max |
| Wireless | LoRaWNA, LoRaRadio, LoRaPMAC. | — | — | — |
| Transmitting power |
RF output interface Wireless transmission power |
— | +17dBm | +19dBm |
| Receiving sensitivity |
SF=7, BW=125KHz | — | -123dBm | — |
| Frequency | 433 | 428MHz | — | 438MHz |
Energy Monitoring
- LoRaWAN communication mode
- Auto polling of data by three-phase electric meter, fast acquisition
- Access to the cloud quickly, and present visualized data
- Wireless meter reading applications can be implemented by connecting to three-phase electric meters
- Particularly applicable for energy management projects in the smart city field

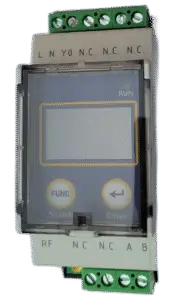

1 - DIN-Rail Mounting
Mount the module onto DIN rail or in a IP65 enclosure if mounting outside.
Connect the Power
Connect AC power from 85 volts to 420 volts.
Connect the antenna
MMCX female, connected to
LoRa antenna onto the bottom left connection on the LoRa module.
DIN-Rail Mounting
- 35mm standard rail installation
- Flame retardant plastic shell
- 1 channel RS-485(default 9600bps)
- Standard sucker antenna
Configuration
- OLED display status
- Button x2
- Wireless&485 firmware upgrade
- Check and configure parameters on site

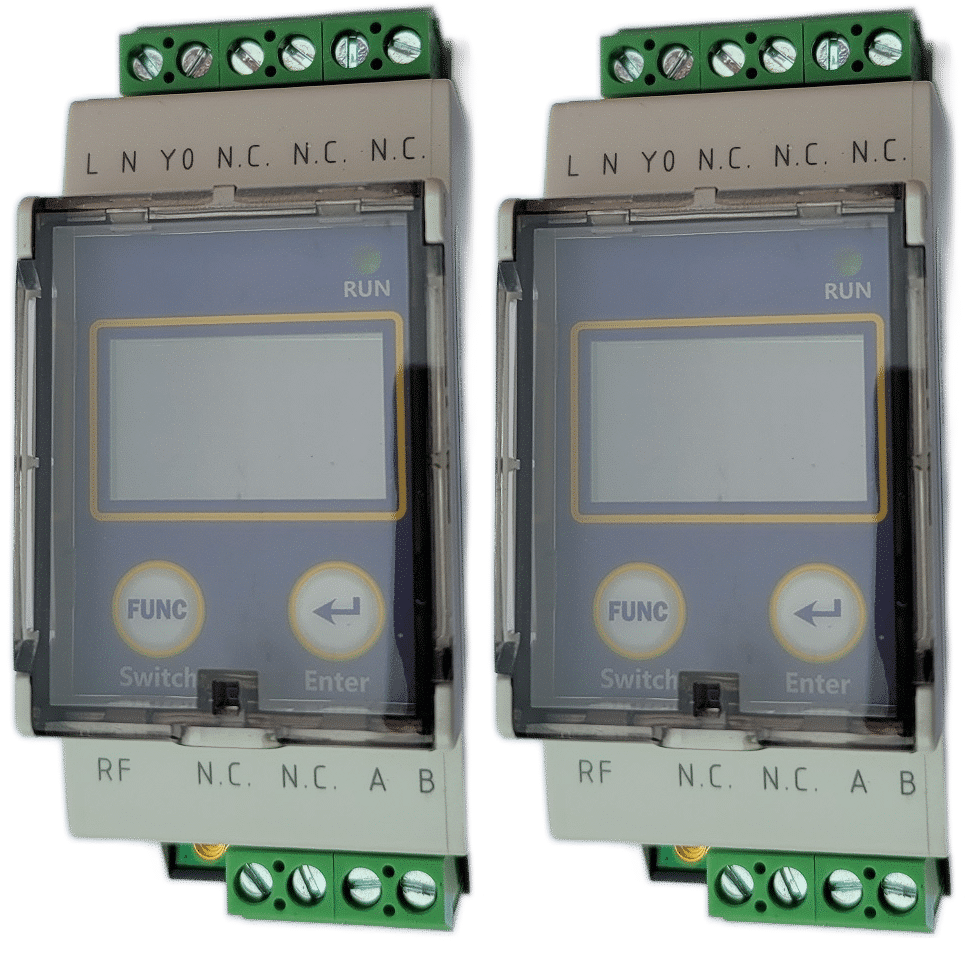

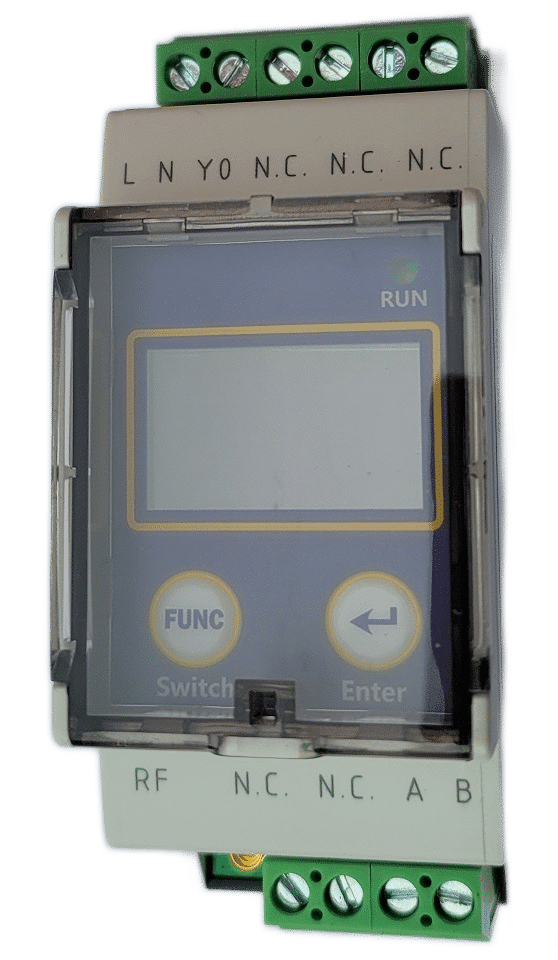

| Name | Direction | Function | Note |
| L | Input | Access live wire input |
AC power supply live wire |
| N | Input | Access zero line input |
AC power supply Neutral wire |
| Y0 | Output | Relay Output | The relay is normally open by default and outputs live line voltage when it is closed; Capacitive load is prohibited, and the maximum load of resistive load is 5A; Externally mounted contactor; |
| N.C | — | — | No Function |
| RS-485A | — | RS-485 A port | |
| RS-485B | — | RS-485 B port | |
| MMCX | Output | RF Antenna Interface | MMCX female, connected to LoRa antenna |

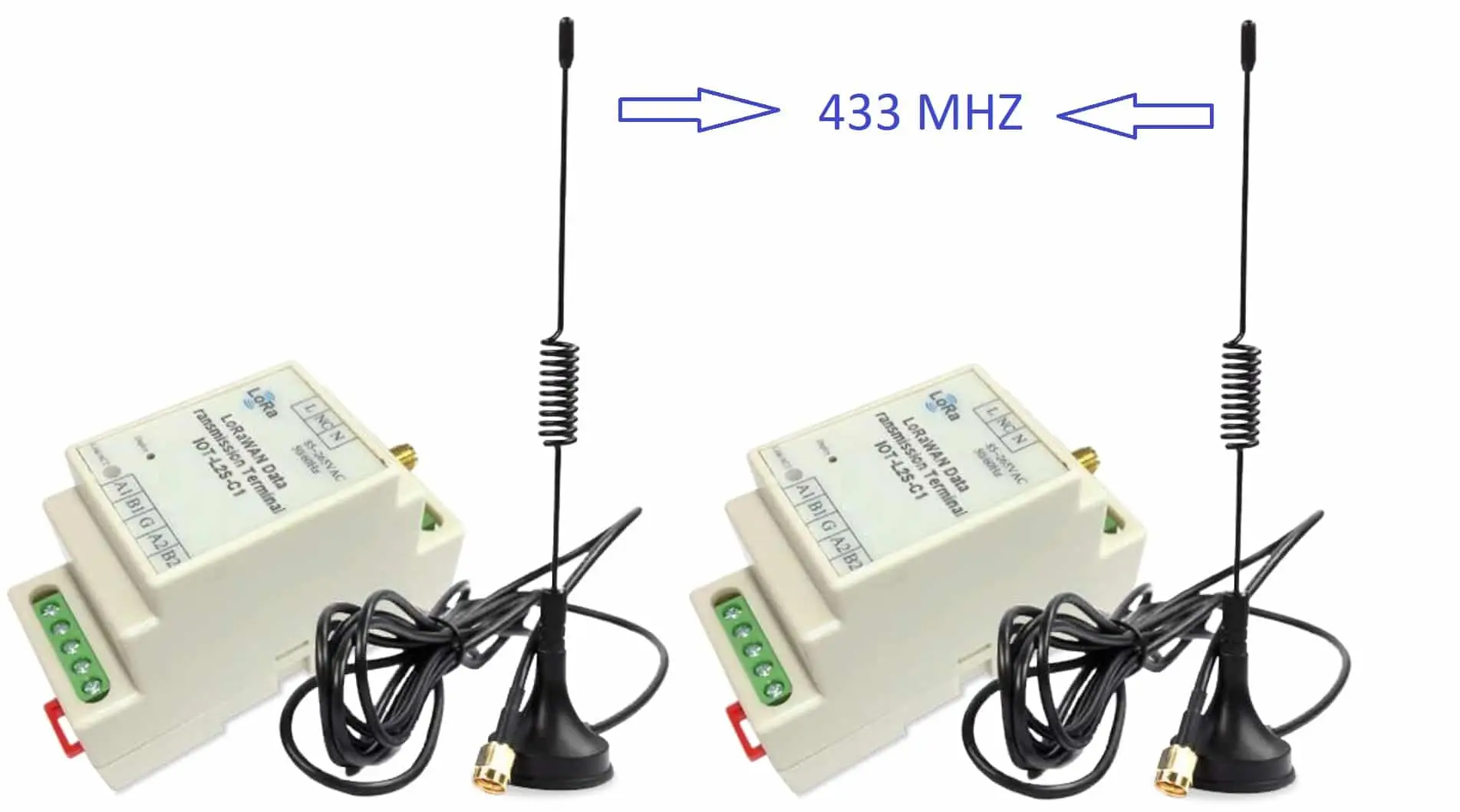

Transparent Transmission
(Point-to-Multipoint)
- LoRaPMAC/LoRa Radio
- Without the gateway, a lower cost
- Easily interface with RS-485 devices or sensors
- Reduce cable deployment for aesthetics
- Multiple connections
- Stronger penetration
- Ideal for Engineering Wireless Retrofit Projects
