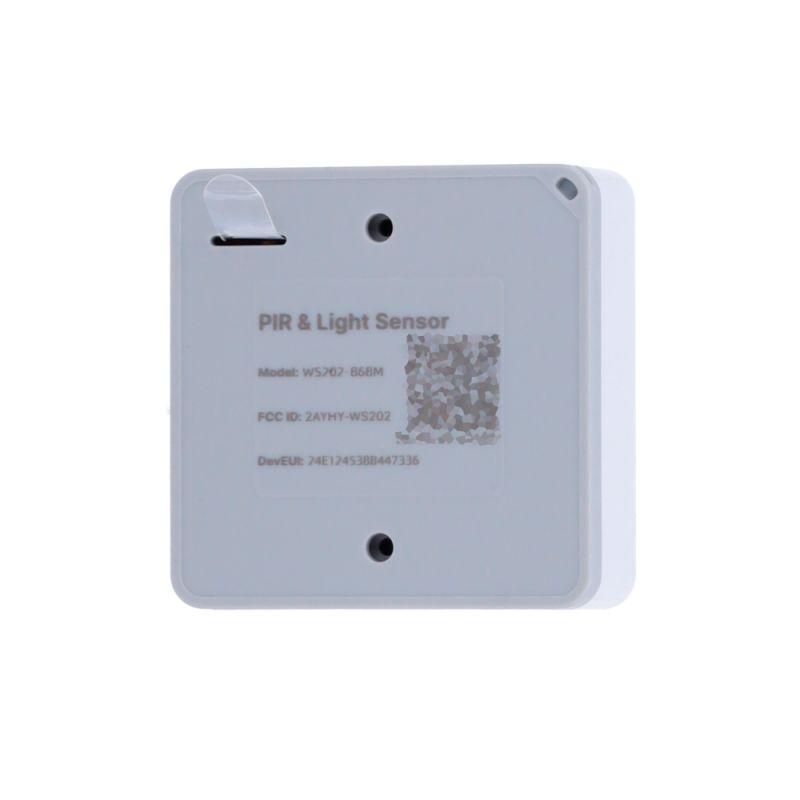

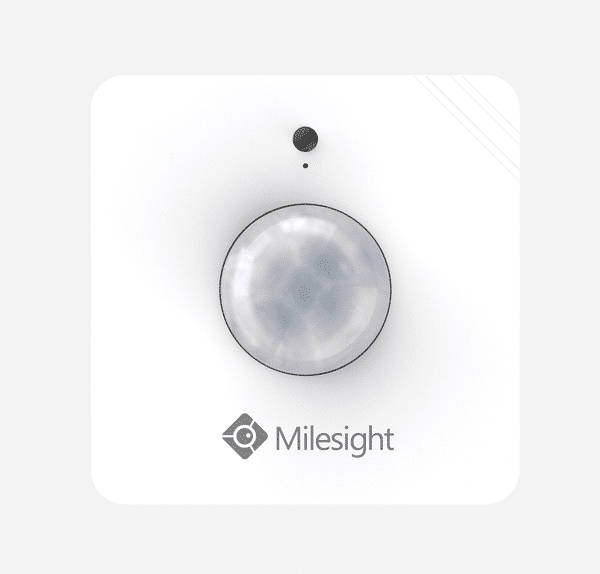

WS202-868M LoRaWAN PIR and Light Sensor

Milesight WS202 is a LoRa PIR sensor based on passive infrared technology to detect motion or occupancy. WS202 can detect movement within a range of 6-8 m and send changes via the LoRaWAN® network. In addition, WS202 is equipped with a light sensor that can link PIR detection results to trigger scenes. With a compact size and powered battery, WS202 is easy to install everywhere. Compliant with Milesight LoRaWAN® gateways, users can view alarms or room occupancy and easily trigger other sensors or appliances remotely via a web page or mobile app.

WS202 can be widely used in smart homes, smart offices, schools, warehouses, etc.

Features

• Occupancy or motion detection based on passive infrared and Fresnel Lens
• Easy to install with a convenient size
• Built-in light sensor, combined with the PIR sensor to achieve triggers
• Ultra-wide-distance wireless transmission up to line of sight of 15 km
• Equipped with NFC for one-touch configuration, supports card emulation mode
• Support Milesight LoRa D2D protocol to enable ultra-low latency and direct control without a gateway
• Function well with standard LoRaWAN® gateways and network servers

Measuring Range

• Detection Area: 120 ° Horizontal, 100 ° Vertical
• Detection Distance: Maximum 8m
