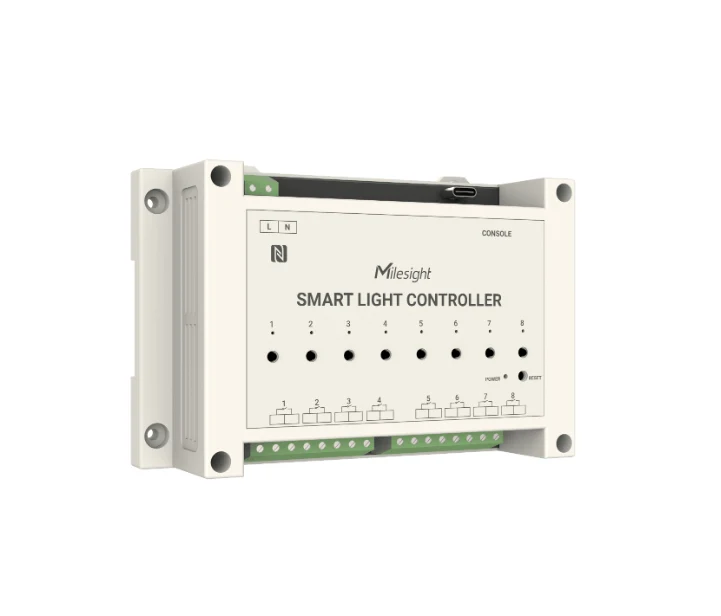

WS558-868M-Switch – Smart Light Switch

WS558 is a LoRaWAN® Smart Light Controller for monitoring and controlling lights locally or remotely. With 2 circuit types and 8 switches, it fits different rooms without the need for re-wiring, reducing renovation costs. Compliant with the Milesight LoRaWAN® gateway, WS558 can be monitored and controlled via a webpage or mobile App remotely and triggered by other Milesight sensors. Besides, WS558 supports the Milesight D2D communication protocol, which can set up connections quickly and be controlled without a gateway.

WS558 can be widely used for wireless control of indoor lights, fans, heaters, machines, etc.

Features

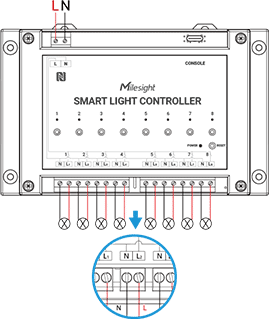

• LN type or switch type optional, capable of controlling up to 8 circuits of lights, adopts different indoor wiring
• Supports local switch button control, able to test the lamp status without networking after the wiring is completed
• Collects data on current, voltage, power, and electrical consumption for smart management. Ultra-wide-distance wireless transmission up to line of sight of 15 km
• Equipped with NFC for one-touch configuration, supports card emulation mode. Compliant with standard LoRaWAN® gateways and network servers
• Supports Milesight D2D protocol to enable ultra-low latency control without a gateway. Supports multicast for control in bulk

Measuring Range

• Input Voltage: 100 ~ 250 VAC, 50 ~ 60 Hz
• Output:8 Passive Switches
• Capacitive & Inductive Load: Maximum 5A per Switch
• Resistive Load: Maximum 10A per Switch
